Compression Testing Machine 1500kN Plate Type
1500 kN plate‑type digital compression testing machine with data storage and on‑screen graphing for concrete specimens.
Est. Lead Time
2-4 Days
Standard finish in stock. Custom fabrication adds 5 days.
Galvanized Finish
Mill Test Reports
Seismic Rated
Bulk Discounts
Product Overview
Description

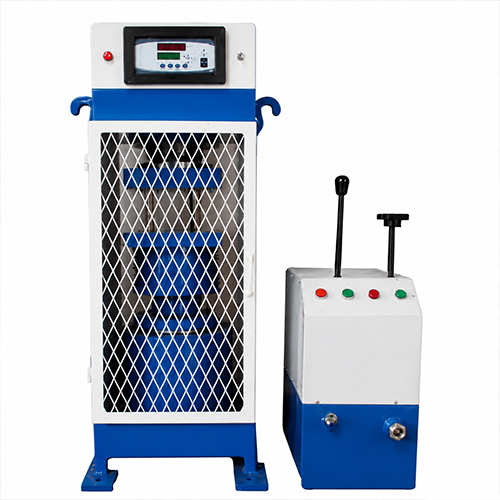

Digital Compression Testing Machine 1000-1500 kN Plate Type motorized with Digital control unit (semi-automatic model), to test cubes up to 150 mm side and cylinders up to diameter 160×320 mm.
Technical Specification
Compression testing machine 1500kn with peak load indicator Plate type Model
- Digital machine with peak load option
- Accuracy 0.1kn
- On screen graph option
- On Spot printing option
- Piston Stroke 50mm
- Ram Dia:180mm
- Platen size: 200mm
- Vertical clearance without spacer 350mm
- Dual mode for testing
- Electrically operated
- Plate type model
- 3 phase electrical connection required
- Can store data upto 100 readings
- Cubes that can be tested: 70mm, 100mm, 150mm
- Cylindrical specimen that can be tested: 50 X 100, 100 X 200, 150 X 300mm
