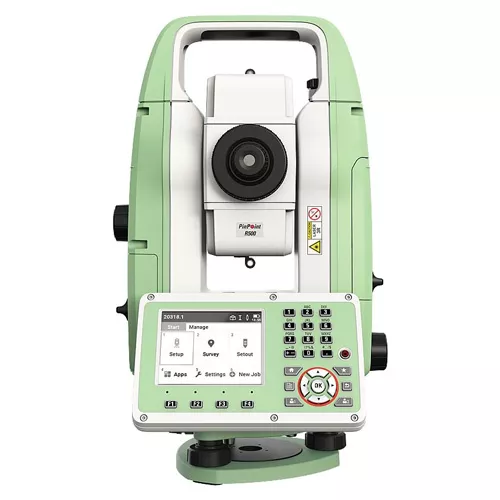

Leica Flexline TS03 Total Station General Features Features Technical Specifications General Features Leica Flexline TS03 Total Station high-quality, manual total stations are based on a proven product concept that has been revolutionizing the world of measurement and survey for nearly 200 years. The instruments are equipped with a comprehensive application-based software package – Leica FlexField software – that enables most surveys and stakeout tasks to be carried out easily and efficiently. The new FlexLine manual total stations work reliably and deliver accurate results even in harsh environments. 2″, 3″ & 5″ angular accuracy 1.5m to 3500m Single Prism Range Prism GPR1 (Long Range mode) > 10.000 m R500 EDM – 500m Reflectorless Range 2 GB Internal Memory Approx 100,000 Points USB Memory Stick & SD Memory Card support 3.5″, 320 x 240px QVGA, grayscale and full alphanumeric keyboard Quadruple Axis Compensation, IP66 Protection, Laser Plummet for Centering Features Key Feature of Leica Flexline TS 03 Reflectorless Total Station Leica FlexLine TS03 is a classic manual total station for standard measuring tasks, enabling you to carry out most survey and layout tasks easily and efficiently. Be it building construction, civil engineering, or surveying and mapping – the Leica TS03 helps you tackle your daily challenges and tasks trouble-free: Managing directors of construction departments benefit from minimal downtime of your survey crews to deliver projects under budget and in time. Survey managers can rely on the highest product durability in the market, which increases your planning certainty. Surveyors work faster by measuring more points per day with fewer measurement errors and rework. Leica FlexLine: The new generation of manual total stations The new Leica FlexLine series is based on a proven product concept, revolutionizing the world of measurement and survey for nearly 200 years. Unlike any other manual total stations in the market, Leica Geosystems manual total stations focus on providing the highest quality, the lowest total cost of ownership, and the longest durability in the industry, enabling users to work with purpose-driven solutions for the best performance results. Leica FlexField software: Comprehensive, intuitive, and easy to use The Flexline TS03 Total Station is equipped with the Leica FlexField software, an intuitive, easy-to-use, and familiar software. Guided workflows and easy to understand graphics and icons ensure a low learning curve when working in the field. The software makes the interpretation of measurement values or text no longer necessary and guarantees a faster and simple operation when you need it. With its pinpoint distance measurement system, you will be able to measure to both prisms and any surfaces. The Leica FlexLine TS03 Reflectorless Manual Total Station is one of the top-class instruments with an accurate EDM (Electronic Distance Measurement) technology that offers a reflectorless range of up to 1,640 feet (500 m). This manual total station operates a range of 11,483 feet (3,500 m) using a single prism. It is also equipped with a broad application-based Leica FlexField software for better surveying and stakeout performance. The FlexLine TS 03 total station features a quadruple axis compensation that has a setting accuracy of up to 0.5 seconds and a range of ±4’. For better target viewing, the TS03 telescope has a 30x magnification, 3” resolving power, and a focusing range of 5.05 feet to infinity. It utilizes a Laser class 2 laser plummet that covers a diameter of 0.1 inches at 4.9 feet instrument height. To easily manage data, it has an RS232 interface and a USB stick/SD card interface, which can accommodate 2GB internal flash memory and a 1GB SD card RAM. Technical Specifications Leica FlexLine TS03 ANGULAR MEASUREMENT Accuracy Hz and V Absolute, continuous, diametrical 2’’ / 3’’ / 5’’ Display resolution: 0.1″ (0.1 mgon) Quadruple axis compensation Compensator setting accuracy: 0.5″ / 1″/ 1.5″ / 2″ Compensator range: +/- 3.78′ (+/- 0.07gon) Electronic level resolution: 2″ Circular level sensitivity: 6′ / 2mm yes DISTANCE MEASUREMENT Range Prism (GPR1, GPH1P): 1.5m to 3.500m Prism GPR1 (Long Range mode) > 10.000m yes Non-Prism / Any surface R500 yes R1000 no Accuracy / Measurement time Single prism Precise+ / Once: 1mm + 1.5ppm (typical 2.4s) Precise&Fast / Once&Fast: 2mm + 1.5ppm (typical 2s) Tracking / Continously: 3mm + 1.5ppm (typical < 0.15s) Averaging: 1mm + 1.5ppm Long Range mode / > 4km: 5mm + 2ppm (typical 2.5s) yes Non-Prism / Any surface 0 m – 500m: 2mm + 2ppm (typical 3-6s) > 500m: 4mm + 2ppm (typical 3-6s) yes Laser dot size At 30m: 7mm x 10mm At 50m: 8mm x 20mm At 100m: 16mm x 25mm yes Telescope Magnification: 30x Resolving power: 3” Focusing range: 1.55m / 5.08ft to infinity Field of view: 1°30’ / 1.66gon / 2.7m at 100m yes GENERAL Display and keyboard 3.5“ (inch), 320 x 240 px QVGA, grayscale, 28 keys yes 2nd keyboard no Key illumination no Operation Endless drives for HZ & V Trigger-Key: user-definable with 2 functions yes Power management Exchangeable Lithium-Ion battery yes Operating time with GEB361 up to 30h Operating time with GEB331 up to 15h Battery charging time with GKL341 charger for GEB361 / GEB331 3h 30min / 3h GKL311 charger for GEB361 / GEB331 6h 30min / 3h 30min Data storage Internal memory: 2GB Flash Memory card: SD card 1GB or 8GB USB memory stick: 1GB yes Processor TI OMAP4430 1GHz Dual-core ARM® Cortex™ A9 MPCore™ Operating system – Windows EC7 yes Interfaces RS2327, USB device yes Bluetooth®8, WLAN9 no Mobile Data sidecover: LTE-Modem for internet access no Guide Light (EGL) Working range: 5m to 150m Position accuracy: 5cm at 100m Wavelength red /orange: 617nm / 593nm no Laser plummet (Laserclass 2) Accuracy Plumb line deviation: 1.5mm at 1.5m instrument height Diameter of laser point: 2.5mm at 1.5m instrument height yes AutoHeight module for automatic instrument height measurement (Laser class 2) Accuracy Distance accuracy: 1.0mm @ 1m Distance range: 0.7m to 2.7m no Weight 4.3kg Environmental specifications Working temperature range: –20°C to +50°C yes Arctic version: –35°C to +50°C no Dust / Water (IEC 60529) / Humidity: IP66 / 95%, non-condensing yes Military Standard 810G, Method 506.5 yes
