Nozzle Meter Test Rig
Nozzle meter test rig for calibrating flow meters and studying flow measurement using nozzles in fluid labs.
Est. Lead Time
2-4 Days
Standard finish in stock. Custom fabrication adds 5 days.
Galvanized Finish
Mill Test Reports
Seismic Rated
Bulk Discounts
Product Overview
Description

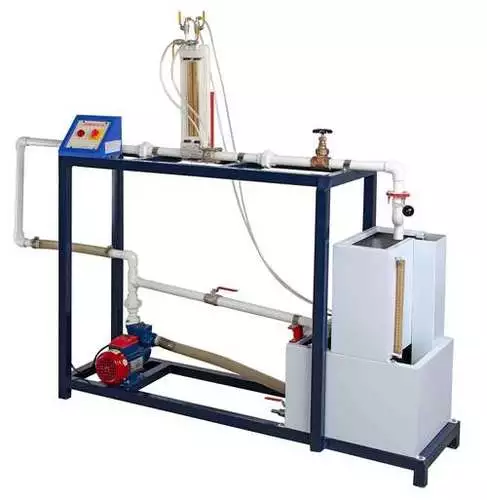

The apparatus consists of a Nozzle meter made of stainless steel houses in Acrylic Test Section. Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump.
Technical Specification
Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stop watch.
