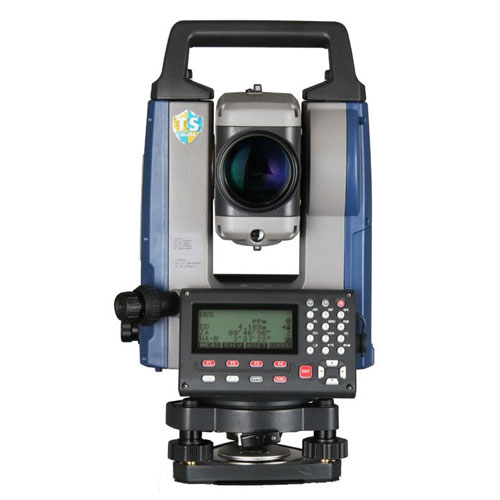

Sokkia iM 105 Total Station General Features Features Technical Specifications General Features Sokkia IM 105 Total Station – (Intelligent Measurement Total Station) incorporates all the features you need at a cost-efficient price. It will handle your most demanding survey layout or as-built project needs. Tradition Meets Innovation 5″ Accuracy Construction and Survey Application Software On Board Best-in-Class Measuring Distance Feature Dual Side Display Control Panel. Reflectorless operation from 0.3m to 1000m . IP66 – Strong Environmental Specification against Tough Sites Integrated Bluetooth® technology Up to 28 hours of battery life in Eco mode Key buttons are illuminated to minimize mistakes. Advanced security and maintenance with TSshield™ Internal memory has 50,000 points to record. Features Key Features of Sokkia IM105 Reflectorless Total Station With Sokkia IM-105 Total Station you get fast, accurate, and powerful EDM technology, best-in-class accuracy up to 6,000 meters with a prism and up to 1000 meter in reflectorless mode, and a battery life of up to 28 hours. The iM-100 series intelligent measurement station is ready to be your hardest worker out in the field. Construction and Survey Application Software Reliable All-Round Total Station Cross-Sectional Survey By using the MLM (Missing Line Measurement) program, the height difference between points can be calculated. Also, you can save time on reflectorless mode to measure a number of points of variation in a large area. Stake Out The Guide Light function will navigate the prism operator to move to the stakeout line quickly so that stake out operation can be done effectively. Elevation Stake Staking out with 3D coordinates eliminates the need to set up TS on the straight line for all elevation stakes. Boundary and Cadastral Survey By using the Area function, you can calculate the area easily. Also, you can determine the center point of the column such as the electric pole, which cannot be directly measured, by using an offset calculation. Coordinate Measurement With coordinate measurement, you can manage 3D coordinate data so that various calculations such as Road, Layout, and more can be determined. 3D coordinate data management can improve productivity drastically. Topographic Survey The trigger key, or measuring distance key, helps you perform topography quickly while continuously viewing through the telescope. Also, the long-distance measuring range reduces the number of the instrument changes for more efficient working time. Improve Topography and Stake Out, with features to achieve faster and more efficient workflows TSshield IoT Support System Remotely update the firmware via the internet Improves asset management by checking TS operating time Remote Lock secures the instrument from theft. Monitor TS health status to enable quick reaction against any functionality issues Superior Basic Feature will Expand Your Application Strong Environmental Spec The IP66 rating ensures durability for almost any rough job site temperatures and conditions. Long Hours Operation One battery lasts up to 28 hours or about four days of normal operation time. Bright Illumination Key for Nighttime Work Key buttons are illuminated to minimize mistakes. Reliable Large Volume Memory Internal memory has 50,000 points to record. USB memory can be used up to 32GB. Japan Quality Products We perform the tough environmental tests to ensure long-term operation even under the rough site environments. Sokkia iM 100 Series total stations are thoroughly inspected with dust-proof and water-proof test chambers. In addition, the various tests against vibration, drop, temperature, and humidity was successfully passed to achieve the best environmental spec. Also, the measuring distance accuracy test on the baseline and the instrument leveling and angle accuracy test and adjustment by the collimator system ensure your satisfaction on iM Series product quality. Technical Specifications Sokkia Total Station iM105 Technical Specifications: Model iM105 Sokkia Total Station Telescope Magnification / Resolving Power 30x / 2.5″ Length 171mm (6.7in.) Objective aperture 45mm (48mm for EDM) Image Erect Field of View 1°30′ (26m / 1,000m) Minimum focus 1.3m Reticle illumination 5 brightness levels Angle Measurement Display Resolution 1″/5″ (0.0002 / 0.001gon, 0.005 / 0.02mil) Accuracy (ISO 17123-3:2001 5″ Dual Axis Compensator Dual-axis liquid tilt sensor, working range: ±6′ Collimation Compensation On/Off (selectable) Distance Measurement Laser output (Reflectorless mode) Class 3R / Prism / sheet mode: Class 1 Range reflectorless mode 0.3 to 800m (2,620ft.) / Under good conditions*: 1,000m (3,280ft.) Reflective sheet RS90N-K: 1.3 to 500m (4.3 to 1,640ft.), RS50N-K: 1.3 to 300m (4.3 to 980ft.), RS10N-K: 1.3 to 100m (4.3 to 320ft.) Mini Prism 1.3 to 500m (4.3 to 1,640ft.) One Prism 1.3 to 5,000m (4.3 to 16,400ft.) / Under good conditions* : 6,000m (19,680ft.) Display Resolution Fine / Rapid : 0.0001m (0.001ft. / 1/16 in.) / 0.001m (0.005ft. / 1/8 in.) (selectable) Tracking / Road : 0.001m (0.005ft. / 1/8 in.) / 0.01m (0.02ft. / 1/2 in.) (selectable) Accuracy Reflectorless: (2 + 2ppm x D) mm Reflective Sheet: (2 + 2ppm x D) mm Prism Mode: (1.5 + 2ppm x D) mm Measuring Time Fine Measurement Mode 0.9 sec. (Initial 1.5 sec.) Rapid Measurement Mode 0.6 sec. (Initial 1.3 sec.) Tracking Measurement Mode 0.4 sec. (Initial 1.3 sec.) OS, Interface, and Data Management Operating system Linux Display / Keyboard Graphic LCD, 192 x 80 dots, backlight, contrast adjustment / Alphanumeric keyboard / 28 keys with backlight Control panel location On both faces Trigger key Yes (right side) Data storage Internal memory: Approx. 50,000 points Plug-in memory device: USB flash memory (max. 32GB) Interface Serial RS-232C, USB2.0 (Type A for USB flash memory) Bluetooth® modem (option) Bluetooth Class 1.5, Operating range: up to 10m General Laser pointer A coaxial red laser using EDM beam Guidelight Green LED (524nm) and Red LED (626nm), Operating range: 1.3 to 150m (4.3 to 490ft.) Levels of Graphic 6′ (Inner Circle) Circular Level 10’/2mm Optical Plummet Magnification: 3x Minimum focus: 0.5m from tribrach bottom Dust and water protection IP66 (IEC 60529:2001) Operating temperature -4ºF to +122ºF (-20ºC to +50ºC) Size with handle (w x d x h mm) 183(W)x 181(D)x 348(H)mm Weight with battery and tribrach Approx. 5.3kg (11.7lb) Power Supply Battery (BDC70) Detachable battery Li-ion rechargeable battery Operating time (20ºC) BDC70 Approx. 28 hours (single distance measurement every 30 seconds)
