Description

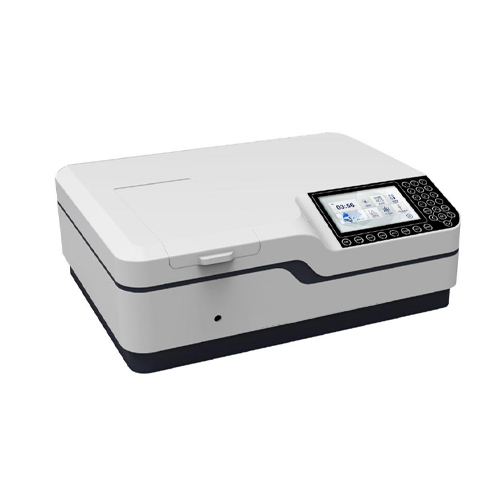

The Spectrophotometer Equipment consist of double beam optics and 7 inches TFT colored screen.

Technical Specification

• Function : Basic, Wavelength Scan, Multi Wavelength, Kinetics, Quantitative, DNA/Protein
• Wavelength Range : 190 – 1100 nm
• Spectral Bandwidth : 1 nm
• Optical System : Double Beam, Grating 1200 lines/mm
• Wavelength Accuracy : + 0.1 nm
• Wavelength Repeatability : + 0.1 nm
• Scanning Speed : HI, MED & LOW. Maximum 3600 nm/min.
• Photometric Range : %T : 0 to 200 %, Abs. : -0.3 to 3 Abs, Conc. : 0 to 9999 C
• Photometric Accuracy : + 0.3 %T or + 0.002 A/h @ 1A
• Photometric Reproducibility : <0.15% T
• Stray Light : <= 0.03 %T @ 220nm & 360nm
• Stability : +0.001 A/hour @ 500nm, after warming up
• Baseline Flatness : + 0.001 A/h (200 – 1000 nm)
• Sample Compartment : 2 Cell holder 10mm. path length (50mm & 100 mm. path length optional at extra cost)
• Light Source : Xenon Lamp
• Noise : + 0.001A (at 500nm, after warming up)
• Detector : Dual Silicon Photodiode
• Display : 7 inches TFT Colored Screen
• Key Board : Soft Touch membrane type
• Output Ports : USB Drive, USB Host & RS232
• Power : 230V + 10%, 50Hz, AC
• Size (LxBxH) : 810x660x390mm (Approx.)
• Weight : 27 Kg. (Approx.)

STANDARD ACCESSORIES :

Quartz Cuvettes – 2 Nos.,

Glass Cuvettes – 4 Nos.,

USB Data Cable for PC Connectivity – 1 No.,

Software CD – 1 No.,

Software Manual – 1 No.,

Mains Lead – 1 No.,

Instrument Cover – 1 No.

Instruction Manual – 1 No

Features

• Double Beam Optics
• 7 Inches TFT Colored Screen
• Auto Wavelength Setting at 0.1nm interval
• On-screen Standard & Kinetic Curve Display
• Xenon Lamp for Extend Lifetime
• Application Software provides complete control of the instrument from a computer through the built in USB Port
• Basic, Wavelength Scan, Multi Wavelength, Kinetics, Quantitative, DNA/Protein Modes
