Air Entrainment Meter
Description
Standard : IS 1199 (1959)
Model No. : PIT-243

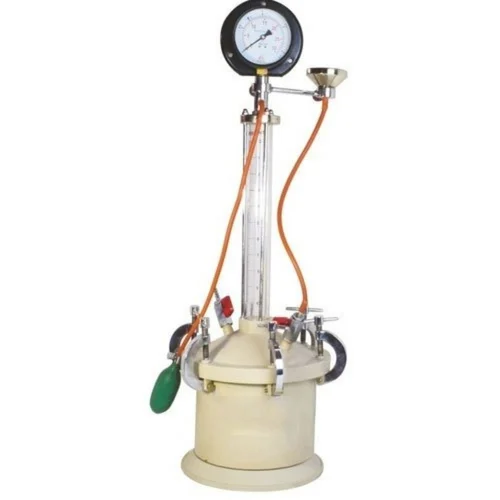

Air Entrainment Meter consists of a pressure tight flanged cylindrical measuring bowl. The bowl is fitted with a removable flanged conical cover assembly with the help of a seal.
Click Here to watch How to Perform Air Entrainment Test.
Technical Specification
The conical cover has an air valve and a petcock for bleeding off the water. A transparent cylindrical stand pipe which is graduated in air content is fixed to the conical cover assembly. Pressure is applied to the specimen with the help of a pressure bulb and the pressure is recorded on the pressure gauge which is mounted on the stand pipe. The whole assembly is mounted on a flat base.
Accessories
- Calibration cylinder with spring clamp
- Trowel
- Tamping rod
- Straight edge
- Rubber mallet and measure
Warranty:
Primetek Air Entrainment Meter comes with 1 year of standard warranty
