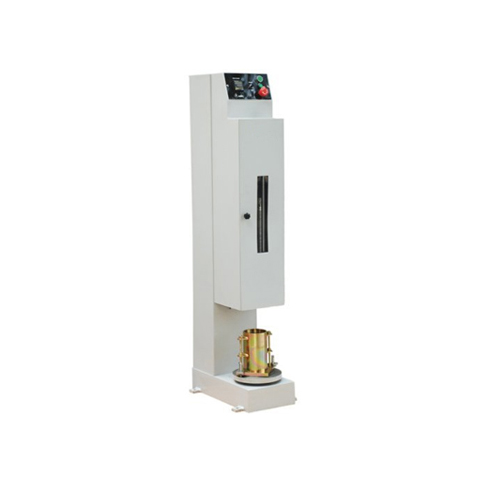

Automatic Soil Compactor

Description

Standard   :

Model No. : PIT-021

Automatic Soil Compactor is designed to compact specimens automatically and uniformly, assuring conformity with the above listed international standards.

Testing of Automatic Soil Compactor :- Click Here to Know all the Detail

Technical Specification

The principle of the design is to allow the hammer to drop  the required height into the soil in the mould which rotates circularly to distribute the blows uniformly over the surface of the specimen in the mould. The drop height is adjustable to 300 mm, 12” (305 mm), 450 mm and 18” (457 mm). The rammer is circular faced and interchangeable to 50 mm or 2” (50.8 mm).diameter.

Rammer weight is adjustable to 5,50 lbf (2.5 kg) or 10 lbf (4.54 kg) according to reference standard. When compacting 100 mm or 4” diameter specimens the unit operates on a single radius and when compacting 150 mm or 6” diameter specimens the unit operates on iner and outer radius to obtain even compaction.

The number of blows per layer can be set at the beginning of the compaction process by the digital counter according to the standard preferred by user. This automatic blow pattern ensures effective and equal compaction for each layer of soil by rotating the base table, so the mould, in equal steps and travelling the rammer across the mould. User defined blow number and in-out distribution is also available.

Technical Details

• Inbuilt tailored compaction cycles programmable by the user
• Automatic dropping height set by controller with no need for manual adjustments
• Dropping height’s continuous monitoring during compaction
• Automatic real-time adjustment delivering high precision throughout the whole compacting path
• Robust long-lasting transmission suitable for intensive use 30 strokes / min
• Safety guards and emergency stop button included
• Compatible with mold dia. 100 to 152.4 mm (4” and 6”)
• Universal impact rammer including circular dia. 50 mm and 2”
• Quick and easy rammer swap and weight adjustment
• Power source 220±10% V AC at 50Hz Heavy duty steel material design
• Preset counter for blows
• 2 Rammers provided
• 2 Set of Moulds
