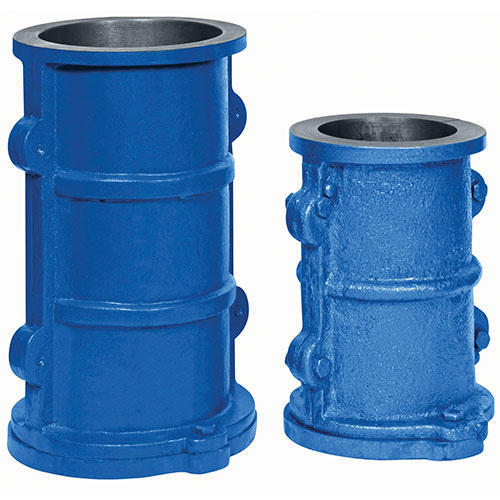

Cylindrical Mould GENERAL INFORMATION The Cylindrical Mould (or Cylinder Mould ) is Used for casting cylindrical concrete specimens for compressive strength, split tensile strength, and modulus of elasticity test for compression testing . . Specification Accessories Model Standard Specification This Cylinder Mould can be split vertically into two parts to be used. The mean internal diameter in within +/-0.2mm and height is within +/-1mm. The ends are machined to +/-0.05 . The base plate and top plate are machined flat to +/-0.03mm. Feature Description Split Type Two vertical halves with clamps or bolts Base Plate Detachable, leveled, and tight-fitting Top Rim Smooth and level for even finishing Surface Finish Smooth, rust-proof coating (painted or galvanized) Identification Embossed or printed size, standard, and batch number Available Size PIT 222A : Cylinder Mould, cast iron , 150mm dia x 150mm height. PIT 222B : Cylinder Mould, cast iron, 150mm dia x 300mm height. PIT 222C : Cylinder Mould, cast iron, 160mm dia x 320mm height. PIT 222D : Cylinder Mould, cast iron, 100mm dia x 200mm height. PIT 222E : Cylinder Mould, cast iron, 300mm dia x 600mm height. Accessories Model PTK-CYM-01 Standard IS 10086 (1982) Contact us For Best Price Name * E-mail * Telephone * Country * Company * Send message
