SKU: PTK-1056 | BRAND: Primetek

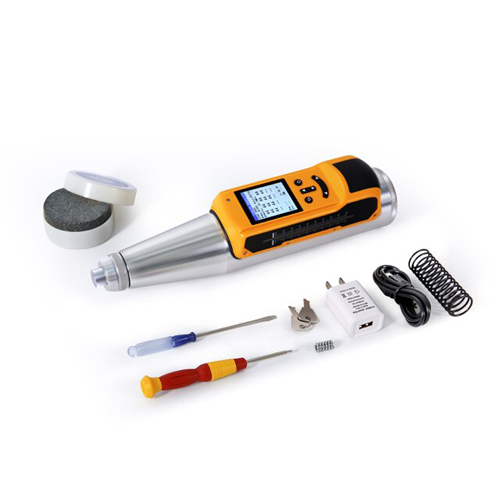

Digital Rebound Hammer

Digital rebound hammer with data storage for quick, non‑destructive estimation of in‑situ concrete compressive strength.
zoom_in
Est. Lead Time 2-4 Days

Standard finish in stock. Custom fabrication adds 5 days.

Galvanized Finish
Mill Test Reports
Seismic Rated
Bulk Discounts

Product Overview

Description

Standard   :

Digital Rebound Hammer TEM91 Series is a Non-destructive testing method of concrete that provide a convenient and rapid indication of the compressive strength of the concrete. It automatically record, save, calculate and Process data.

Technical Specification

  • Display : 2.0inch (220 x 176 pixels)
  • Language : English Verson
  • Output Mode : Cable (Update version have WIFI, Bluetooth)
  • Storage Capacity : 2000 pcs, 640 Thousand data
  • Turn Off : Automatic turn off without operation
  • Power Supply : 3.7V lithium battery, 1050 mA
  • Port : USB (update type bluetooth and WIFI)
  • Collection Mode : Automatic display and record data
  • Size (mm) : 150 x 62 x 39
  • Weight : 0.1kg (include battery)

Schmidt Hammer

  • Standard Impact Energy : 2.207j
  • Rigidity of Tension Spring : 7.85N/m
  • Error Range  for Digital Display : ≤ ± 1 (the difference between  displayer and sale)
  • Average Rebound Hammer on Steel Anvil Rm : 80 ± 2
  • Weight (kg) : 0.1kg
