Laboratory Vane Shear Apparatus
Description
Standard :
Model No. : PIT-072

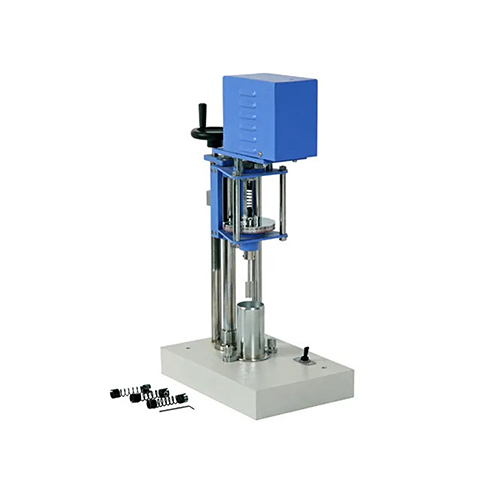

Laboratory Vane Shear Apparatus is Consists of a torque head adjustable in height by means of a lead screw rotated by a drive wheel to enable the vane to be lowered into the specimen. Rotation of the vane is by means of an electrically operated rate of rotating is 1/60 R.P.M. Suitable for operation on 230 V A.C. Single Phase which operates a worm gear arrangement turning the upper end of a calibration torsion spring, vane dia, rod dia, vane size & vane height are as per IS specifications
See Full Test Procedure of Vane Shear Test Apparatus (Motorised) :- Click Here
Technical Specification
The vane shaft is attached through the hollow upper shaft to a resettable pointer, which indicates the angle indicates the angle of torque on a dial graduated in degree the dial reading multiplied by spring factor gives the torque a container for soil sample is also supplied & a sampling tube of 38mm. i.d. & 150mm long can also be used as container .Vane Shear Apparatus Supplied with set of four springs, one each of approx. 2 kgs/cm2, 4kgs/cm2, 6 kgs/cm2 & 8kgs/cm2 complete as above in a wooden carrying case
- Vane 12.7 x 12.7 mm included.
- Four calibrated springs each with deflection/load.
- Weight: 11 kg approx.
- Dimensions: 620 x 250 x 280 mm (H x W x D).
