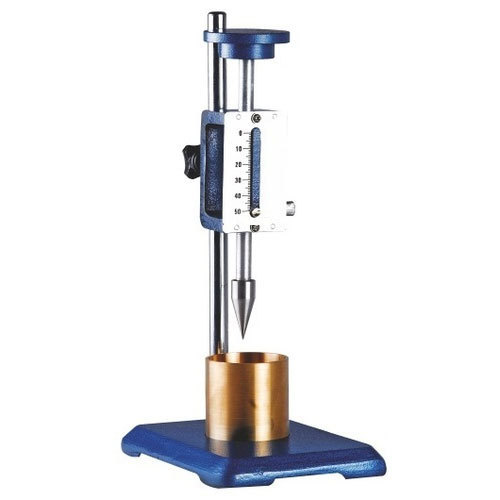

Soil Cone Penetrometer
Soil cone penetrometer for liquid limit determination of low plasticity soils. Standard IS 2720 Part 5.
zoom_in
Soil Cone Penetrometer
Soil cone penetrometer for liquid limit determination of low plasticity soils. Standard IS 2720 Part 5.
Est. Lead Time
2-4 Days
Standard finish in stock. Custom fabrication adds 5 days.
Galvanized Finish
Mill Test Reports
Seismic Rated
Bulk Discounts
Product Overview
Soil Cone Penetrometer used for determining the liquid limit of soils. Specially useful for soils with low plasticity index. Cone with half angle 15-30 minutes under total sliding weight 148gm penetrates 25mm to give liquid limit. Model PTK-CP-01
Safety Certification
verified_user
Certified Structural Grade
Verified by third-party lab
Our products undergo rigorous testing to ensure they meet and exceed industry safety standards for high-load applications.
Need a Customization?
We offer precision cutting and threading services for bespoke structural requirements.
