Vibrating Table
GENERAL INFORMATION

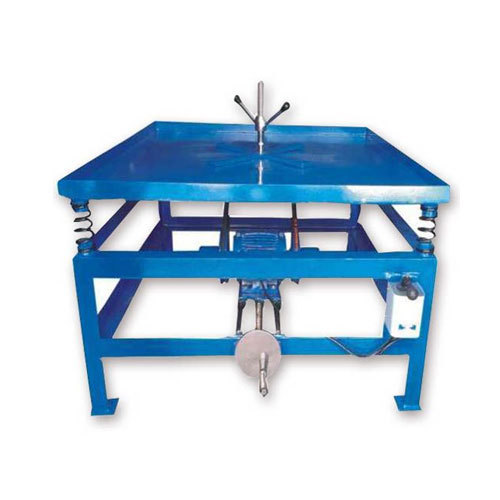

The Vibrating Table is used for compaction of cement concrete cubes and cylinders by vibration. The load carrying capacity of the table is about 150 kg. The table is supported on rubber mounting springs and the housing of the eccentric is fitted below the table top.
| Table Size | 1000 mm x 1000 mm (1 m x 1 m) |
| Table Top Material | Thick Mild Steel (MS) or Cast Iron Plate |
| Table Top Thickness | 10–12 mm (commonly) |
| Surface Finish | Smooth, machined finish with anti-rust coating |
| Mounting | Table mounted on heavy-duty springs |
| Vibration Mechanism | Eccentric vibrating motor / Unbalanced weight motor |
| Vibration Frequency | Adjustable: ~3600 vibrations per minute |
| Amplitude | Typically adjustable via eccentric weights |
| Load Capacity | Approx. 140–150 kg uniformly distributed |
| Motor Power | 1–2 HP (depending on design) |
| Power Supply | 230 V / 50 Hz single phase AC or 415 V 3-phase |
| Control Panel | ON/OFF switch, speed regulator (if variable speed), fuse |
Note : It comes in various size 1000 x 1000mm, 800 x 800mm, 500 x 500mm
-
Base Frame:
Rigid MS angle iron structure to absorb vibrations and provide stability. -
Springs:
Heavy-duty compression springs isolate vibration from the floor. -
Vibratory Motor:
Flange-mounted or foot-mounted motor with eccentric weights to produce vibration. -
Control Box:
Includes starter, controls for vibration intensity (variable speed optional), indicator lamp.
All Sizes of Mould As Per Requirement
Cube Mould (150 x150mm)
Cube Mould (100 x100mm)
Cube Mould (50 x50mm)
Cylindrical Mould All Sizes
