Semi Automatic Compression Testing Machine
Semi‑automatic compression testing machine with power pack for effortless loading of concrete and masonry specimens.
zoom_in
Semi Automatic Compression Testing Machine
Semi‑automatic compression testing machine with power pack for effortless loading of concrete and masonry specimens.
Est. Lead Time
2-4 Days
Standard finish in stock. Custom fabrication adds 5 days.
Galvanized Finish
Mill Test Reports
Seismic Rated
Bulk Discounts
Product Overview
Description

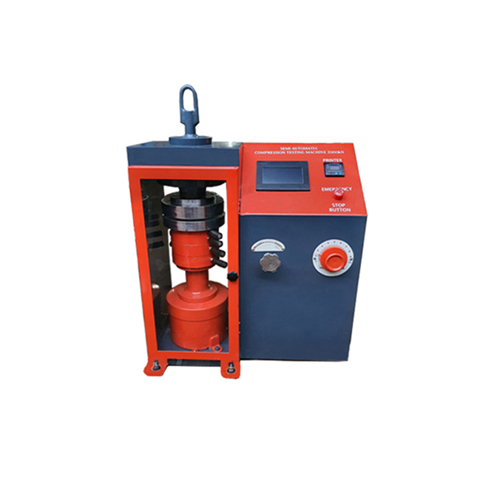

Semi-Automatic Compression Testing Machine developed by Primetek Instruments is a robust compression tester manufactured as per International Standards. Equipped with touch screen display, this machine is easy to use and maintained.
The load frame is a sturdy welded plate type complete with hydraulic power pack attached to it. Solid machined spacers are supplied to test different sizes of concrete specimen. The piston is duly hard chromed for fast lift and return.
Technical Specification
- Capacity: 2000kn
- Least Count: 1 kn
- Piston Stroke: 50mm
- Rated Hydraulic Pressure: 40
- Automation: Semi-Automatic
- Piston Dia: 234mm
- Material: mild Steel
- Motor Power: 1 hp
- Voltage: 440 V 3 phase
- Weight: 450 kg
- Display Size: 7 inches
- Connectivity: USB 2.0, RS 232
- Calibration: NABL
- Certification: ISO
- Warranty: 12 months
Standard : IS:516
Model No. : PIT-2001B
