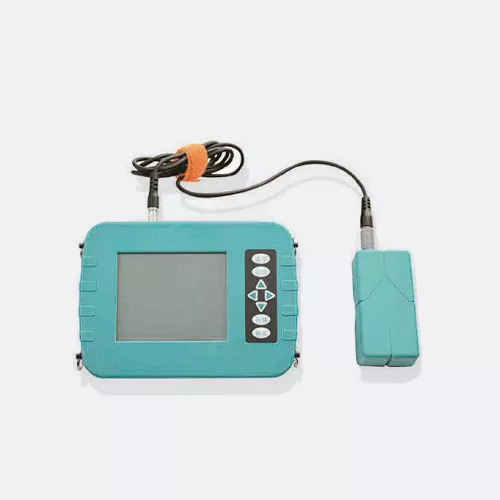

Rebar Locator
Description
Standard :
Model No. : PIT-
The Rebar locator is a portable non-destructive testing instrument, which can be used for the detection of the construction quality of reinforced concrete structures. It can measure the position of steel bars on the concrete surface and detect the thickness of the protective layer of the steel bars and the diameter of the steel bars in addition, the position of magnets and conductors in concrete structures can also be detected, such as cables and plumbing pipes inside walls. The detection before construction can effectively avoid damage to these facilities and reduce accidents
Technical Specification
| TECHNICAL PARAMETERS | |
| Product Model | PTK-RBL |
| Aplicable Range of Protective Layer Thickness (mm) | 6mm~90mm |
| First Range | 6mm~200mm |
| Applicable Scope of Diameter | ±1 Specification |
| Maximum Eror of Diameter Estimation | Not Supported |
| Section Grid | 2000 Components x 1000 Measuring Point |
| Storage Quantity | USB Wireless Cloud Transport (Options) |
| Data Transmission Mode | Lithium Battery |
| Power Supply Mode | Waterproof Parameters : IP65, Screen Size : 5 Inches, Resolving Power : 320 x 240, Volume : 195 x 140 x 45mm, Weight : 0.8kg |
| Host Parameters | Large Capacity Lithium Battery for More Than 12 Hours |
| Working Environment Requirements | Temperature -10°C~+40°C, Humidity : < 90%RH |
Product Features
- upgraded wireless cloud transmission function;
- Adopt three anti-shell design, waterproof, dust proof and shock proof;
- Large screen high resolution LCD screen, the interface has Chinese prompts, more intuitive display content;
- Built-in large capacity memory card, storage capacity upgrade
- USB transmission simulates the host computer a U disk and reads data as easily as a U disk.
- Real-time display of protective layer thickness and steel signal image, minimum automatic locking
- Dual-range operation mode can effectively ensure the detection accuracy and maximum detection depth
- Automatic storage of test data, on-site statistical analysis results are provided immediately, which is convenient for guiding construction work
- Professional data analysis software, so that your post processing o and report generation work can be easily completed.
Warranty
Non-Metallic Ultrasonic Detector comes with 1 year of product warranty
