Concrete Penetrometer
Concrete penetrometer with interchangeable needles for monitoring setting rate and early strength gain of cement mortar.
zoom_in
Concrete Penetrometer
Concrete penetrometer with interchangeable needles for monitoring setting rate and early strength gain of cement mortar.
Est. Lead Time
2-4 Days
Standard finish in stock. Custom fabrication adds 5 days.
Galvanized Finish
Mill Test Reports
Seismic Rated
Bulk Discounts
Product Overview
Description

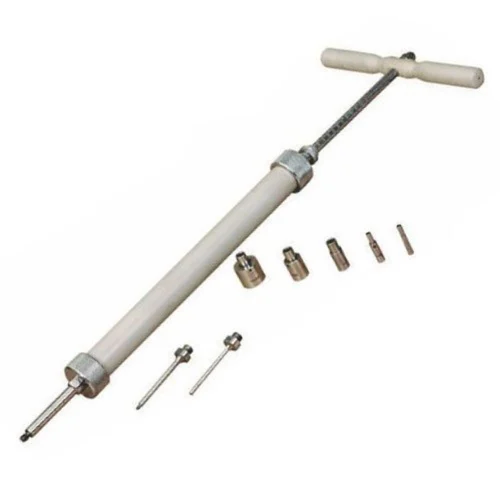

Concrete Penetrometer is used for finding out the rate of hardening of mortar sieved from concrete spring and a stem graduated from 0-70 kg x 1 kg. The Test is Performed in Concrete Mould.
Test Procedure of Concrete Penetrometer click here to Watch Full Video
Technical Specification
Six interchangeable penetration needles of areas 645, 323, 65 32 and 16 mm sq. is provided. The penetration resistance is measured by the force exerted to penetrate the mortar by 25 mm and is indicated by a sliding ring on the stem, which is graduated. Needle shanks are marked at every 12.5 mm. Supplied complete in a wooden carrying case.
Warranty:
Primetek Concrete Penetrometer comes with 1 year of standard warranty
MODEL – PTK-SPM-01
Safety Certification
verified_user
Certified Structural Grade
Verified by third-party lab
Our products undergo rigorous testing to ensure they meet and exceed industry safety standards for high-load applications.
